That sounds about right.

The A&A1 controllers might show up at Rat Shack, although it's been a long time since they carried them.

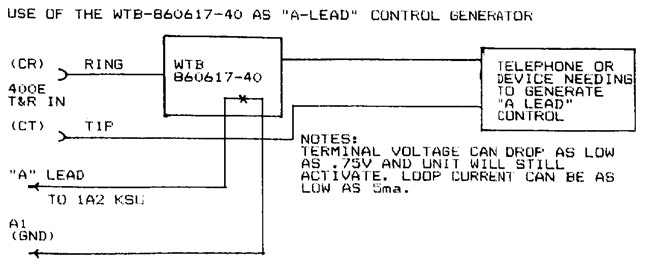

Best bet is sandman https://www.sandman.com/images/wizscale.jpg
for the Wizard's Tool Box relays.

Carl

Atcom VoIP Phones
VoIP Demo

Best VoIP Phones Canada


Visit Atcom to get started with your new business VoIP phone system ASAP
Turn up is quick, painless, and can often be done same day.
Let us show you how to do VoIP right, resulting in crystal clear call quality and easy-to-use features that make everyone happy!
Proudly serving Canada from coast to coast.

#483726 09/03/07 05:23 AM
Joined: Dec 2005
Posts: 7,056
RIP Moderator-Mitel, Panasonic
*****
Offline
RIP Moderator-Mitel, Panasonic
*****
Joined: Dec 2005
Posts: 7,056
OR, try Ed. He has all sorts of older parts and equipment! (UH, on the shelves in his stockroom, that is. smile ) John C. Not Garand)


When I was young, I was Liberal. As I aged and wised up, I became Conservative. Now that I'm old, I have settled on Curmudgeon.
#483727 09/04/07 02:22 AM
Joined: Apr 2007
Posts: 13
Member
Offline
Member
Joined: Apr 2007
Posts: 13
There is a scan of the ITT501 KSU installation manual located at

Please provide this type information via PM or email to fellow installers.
Thanks, Bill


(careful -- all the pages are there, but not in order)
The ITT501 is a larger system, but a near-clone of the WE501 and the wire designations and the installation style is the same as the 551, so it should provide good guidance.
Also, there was a guy who sells A-lead adapters periodically on eBay for $20, listed as "A-Lead Control Unit for Western Electric 1A2 Key System". If you are installing traditional 500-style single line phones, some of them can be rearranged to provide A-lead control from the hookswitch. Depends on the model.

#483728 09/04/07 07:47 AM
Joined: Dec 2002
Posts: 9,423
Likes: 1
Member
*****
Offline
Member
*****
Joined: Dec 2002
Posts: 9,423
Likes: 1
wow I just opened that PDF and it made my head hurt smile


Jeff Moss

Moss Communications
Computer Repair-Networking-Cabling
MBSWWYPBX, JGAE
#483729 09/04/07 08:09 AM
Joined: Sep 2006
Posts: 3,290
Member
*****
Offline
Member
*****
Joined: Sep 2006
Posts: 3,290
Beware the so-called A-lead adapters that the guy on Ebay sells. They are not engineered properly, and several people have brought that to his attention. They will not work on pulse phones, as the relay is not slow-release, causing them to chatter (with the resultant lamp flickering) when the rotary phones dial.


Arthur P. Bloom
"30 years of faithful service...15 years on hold"

#483730 09/04/07 01:49 PM
Joined: Dec 2005
Posts: 7,056
RIP Moderator-Mitel, Panasonic
*****
Offline
RIP Moderator-Mitel, Panasonic
*****
Joined: Dec 2005
Posts: 7,056
Well then Jeff, Stay Away from the 512! smile John C. (Not Garand)


When I was young, I was Liberal. As I aged and wised up, I became Conservative. Now that I'm old, I have settled on Curmudgeon.
#483731 09/04/07 02:09 PM
Joined: Mar 2002
Posts: 411
Member
Offline
Member
Joined: Mar 2002
Posts: 411
Quote
Please provide this type information via PM or email to fellow installers.
Thanks, Bill
I can understand the desire to keep some of the manuals quiet but this switch is, conservatively, 20 years old. I don't think it's going to be considered state secrets if someone is crazy enough to look through it. That being said, if you can PM me the link I would like to see it :-) I was familiar with all of the old GTE/Automatic Electric stuff, I didn't grow up in a Bell town.

#483732 09/04/07 04:03 PM
Joined: Aug 2007
Posts: 29
Member
Offline
Member
Joined: Aug 2007
Posts: 29
I guess I better speak to Ed - he seems to be an extream valuable resource on this system!

Thanks for the pointers

Ron

#483733 09/04/07 05:23 PM
Joined: May 2002
Posts: 17,722
Likes: 18
Member
****
Offline
Member
****
Joined: May 2002
Posts: 17,722
Likes: 18
Your original question was answered correctly by Carl Navarro. Ed did have the A lead relay for the 1A2 PM him to see if he still has them. As far as djweis post, it's not the length of time, it's the policy of the board.

One point, when a thread keeps coming up with different questions on the same system it does tend to get confussing for those trying to find answers. It's better to start a new topic so others can search the board and find the answers they may need, instead of reading through a thread this size to find their answer.


Retired phone dude
