I have worked with cable as pictured a few times but not in a very long while. I think it was at St Paul's College in Lawrenceville Va.
www.myrandomviews "Old phone guys never die, they just get locked in some closet with an old phone system and forgotten about" Retired, taking photographs and hoping to fly one of my many kites.
|
|
|
Visit Atcom to get started with your new business VoIP phone system ASAP
Turn up is quick, painless, and can often be done same day.
Let us show you how to do VoIP right, resulting in crystal clear call quality and easy-to-use features that make everyone happy!
Proudly serving Canada from coast to coast.
|
|
|
|
Joined: Sep 2006
Posts: 3,290
Member
|
|
Member
Joined: Sep 2006
Posts: 3,290 |
Chris, if you strip the lead back a ways you'll see the way that the pairs are arranged, and see the color code. You need to use paper tape (like masking tape) and wrap a few times around the end of the wires to keep them from unwinding.
To remove the lead sheath, take a knife and score around the sheath about 6 or 8 inches back from the end. Then gently bend it to & fro a few times and the lead will snap apart, allowing you to slide it off the end of the cable.
Arthur P. Bloom
"30 years of faithful service...15 years on hold"
|
|
|
|
|
Joined: Sep 2006
Posts: 3,290
Member
|
|
Member
Joined: Sep 2006
Posts: 3,290 |
Hawk, Google "Youtube telephone cable splicing" and there are some videos.
Arthur P. Bloom
"30 years of faithful service...15 years on hold"
|
|
|
|
|
Joined: Jan 2005
Posts: 15,402 Likes: 18
Moderator-Vertical, Vodavi, 1A2, Outside Wire
|
|
Moderator-Vertical, Vodavi, 1A2, Outside Wire
Joined: Jan 2005
Posts: 15,402 Likes: 18 |
Ed Vaughn, MBSWWYPBX
|
|
|
|
|
Joined: Feb 2014
Posts: 660
Moderator-1A2
|
|
Moderator-1A2
Joined: Feb 2014
Posts: 660 |
Arthur, next time I'm in that cellar I'll try to get a long enough piece so I can strip it as you said and get the idea. I think there's some I can remove without ruining the setup. I wanted to leave everything as intact as I can. What can you tell me about the older color code of the plastic cables. They have colors and tracers like modern cable, but it's the old code. I've heard of even count and odd count, but I don't know what that means. There's a ton of this 16 pair plastic stuff down there, and if I can make heads or tails of the color code I'll use it for my 1A2 system. 16 pair is plenty for a six button phone. That stuff is so chaotic that it's not of any artistic, historic, or intrinsic value in that building. I have no qualms about tearing it out and reusing it, and the owners don't care either.
|
|
|
|
|
Joined: Dec 2005
Posts: 9,181 Likes: 9
Spam Hunter
|
|
Spam Hunter
Joined: Dec 2005
Posts: 9,181 Likes: 9 |
I used a pipe cutter to make clean ends on my pieces of cable.
I Love FEATURE 00
|
|
|
|
|
Joined: May 2002
Posts: 17,746 Likes: 37
Member
|
|
Member
Joined: May 2002
Posts: 17,746 Likes: 37 |

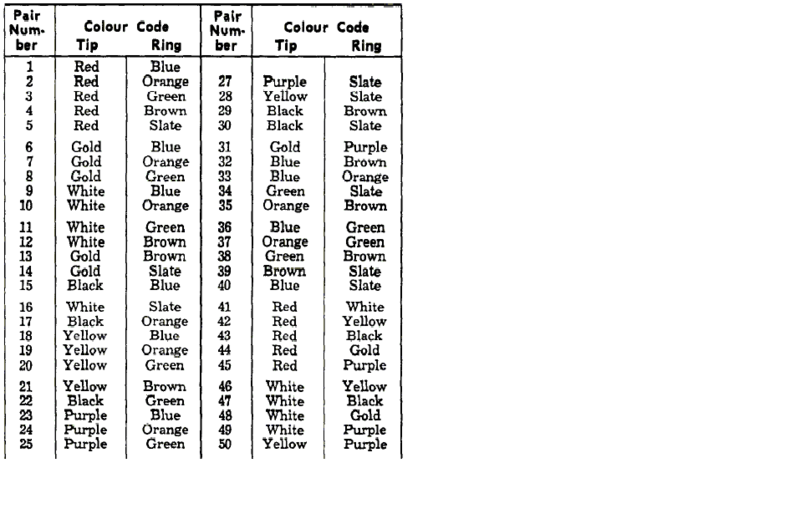

Odd Pic ![[Linked Image from i93.photobucket.com]](https://i93.photobucket.com/albums/l70/ggwwoods/odd_pic_2.jpg_zps5aragnes.png)
Retired phone dude
|
|
|
|
|
Joined: Feb 2014
Posts: 660
Moderator-1A2
|
|
Moderator-1A2
Joined: Feb 2014
Posts: 660 |
Thanks Bill! That's the stuff alright. Just out of curiosity, when did they change to even count?
|
|
|
|
|
Joined: May 2002
Posts: 17,746 Likes: 37
Member
|
|
Member
Joined: May 2002
Posts: 17,746 Likes: 37 |
Bet Arthur know, or can find the answer to that. I only had to splice it twice and all new stuff was pulp or standard count.
